General Specifications:

·         Line Direction: L-R left to right.

·         Max Tube Diameter: 3 1/8” (79.38 mm)

·         Min Tube Diameter: .5” (12.7 mm)

·         Max Wall Thickness: .160” (4.06 mm)

·         Min Wall Thickness: .020” (.508 mm)

·         Max Line Speed: 350 FPM

·         Max Material Yield: 50,000 PSI

·         Roll Space Forming: 12” (304.8mm)

·         Roll space Fin & Sizing: 6” (152.4mm)

·         Driven Shaft Diameter: 3” (76.2 mm)

·         U-joint driven stands, (Drive Shaft Style Mill)

Entry Equipment:

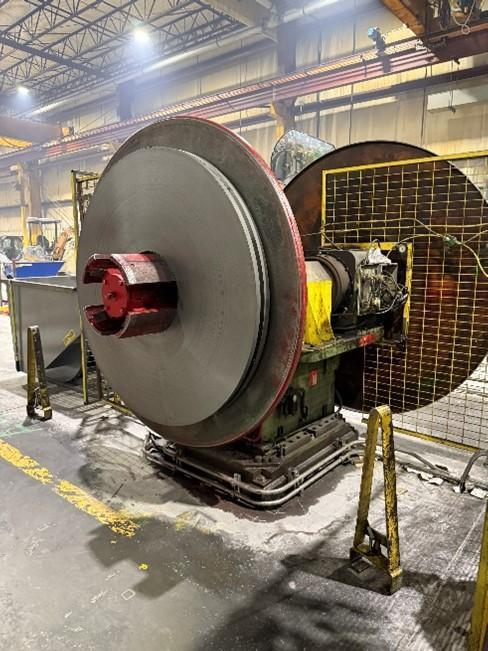

·         Kent SHD 10,000 Lb. Double Uncoiler 12” wide, air brakes. s/n 8172

·         Kent PMH 10-135 s/n 70957

·         Kent Floop

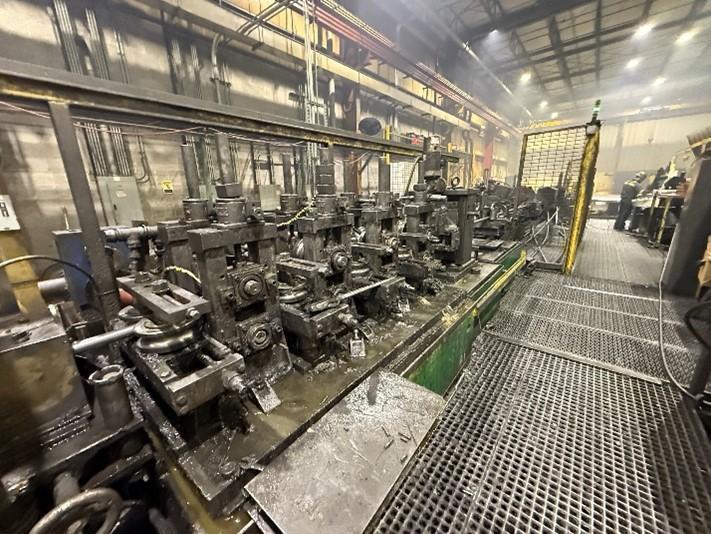

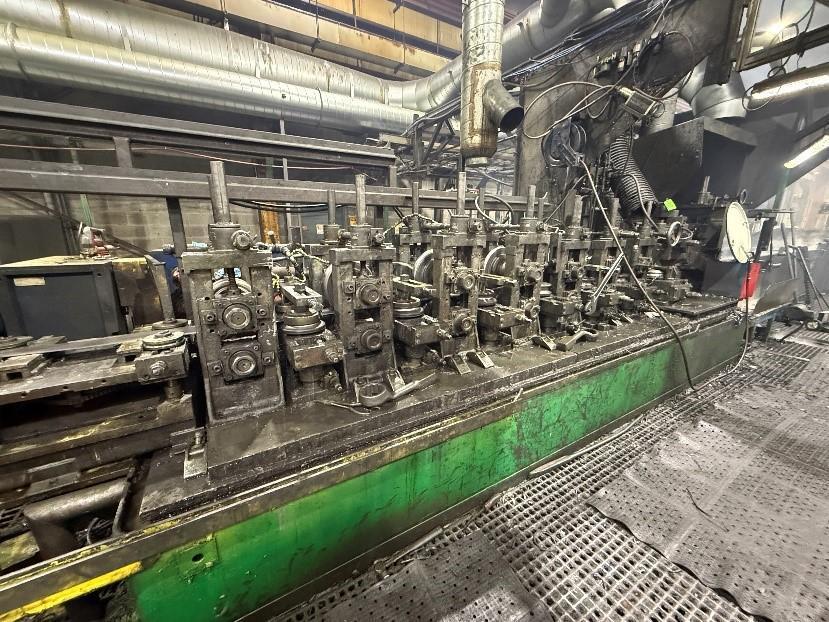

Forming Section:

·         1-Entry Table (4-roll)

·         4-Driven Forming Stands w/Single Point Adjustment.

·         4-Idle Side Rolls w/Vertical Adjustment.

·         1-Mandrell Bracket.

·         3-Driven Fin Stands w/Single Point Adjustment.

·         2-Idle Side Rolls w/Vertical Adjustment.

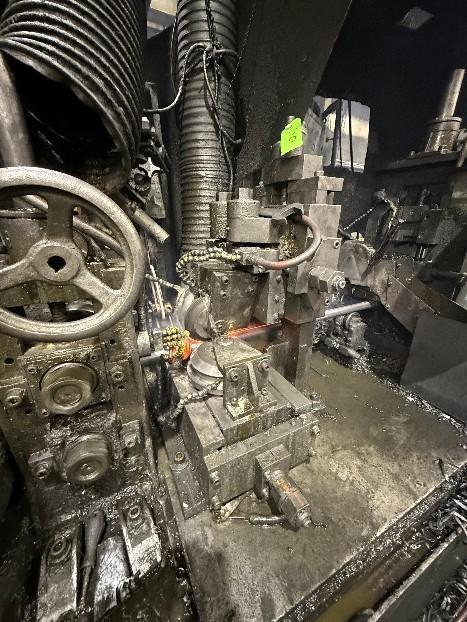

Welding Section:

·         1-Thermatool 300KW Solid State HF Welder.

·         1-4 Roll Weld Pressure Unit (plus I spare WP Unit)

·         1-Single Scarfing stand.

·         1-Weld Bump Roll (so the weld chips, falls into conveyor)

·         1-Ironing Stand / Support stand.

·         1-24’ Coolant Zone.

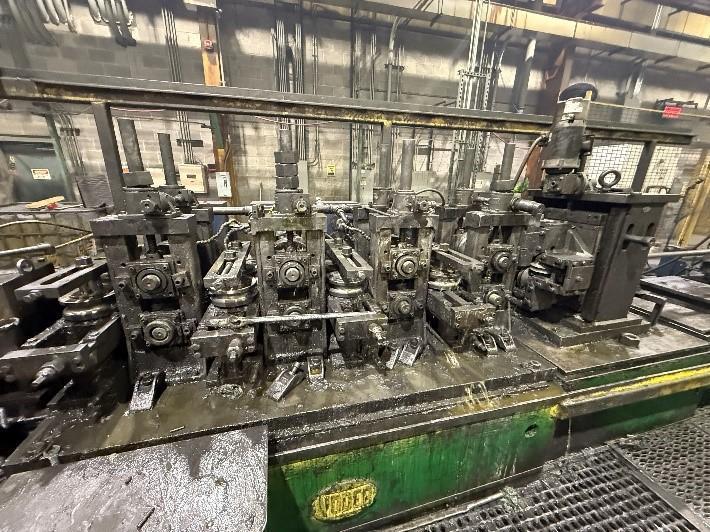

Sizing Section:

·         4-Driven Sizing Stands w/Single Point Adjustment.

·         4-Idle Side Roll Passes w/Vertical Adjustment.

·         1-4 Roll Double sided Turkshead (Straightener)

·         1-Pruftechnik Lab 4200 B 115

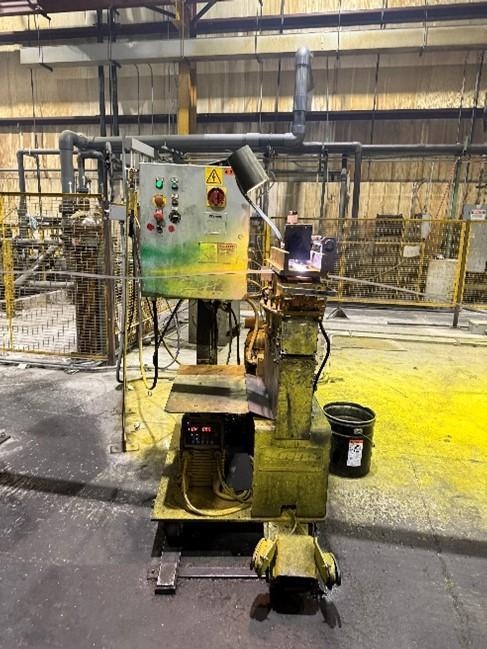

Cutoff Section:

·         1-MTM Flying Saw Cutoff.

·         24’ Runout Table with incline table & Bundle Bunks.

Drive Section:

·         1-Set of DMC Gearboxes (for all driven stands)

·         1- Set of Drive shafts.

·         2-Drive Motors, 75 KW (100.58 HP)

·         1-Set of Control Panels & Electrical Panels.

Roll Tooling:

·         Large Quantity of Roll Tooling some whole sets & some partial sets (Customer to Confirm sizes)

·         Numerous sizes: 20mm (.790”), 27.2mm (1.07”), 28.6mm (1.13”), 30mm (1.18”), 31.8mm (1.25”), 34mm (1.34”), 35mm (1.38”), 36mm (1.42”), 38.1mm (1.5”), 42.2mm (1.66”), 57.15mm (2.25”).

 Spare Parts:

·         30 New shafts (For Driven Stands)

·         Weld coils & Impeders.

·         Mandrell Rods.

·         Bearings & Seals

·         (4) New Gearboxes & some new motors.
